ezCAT

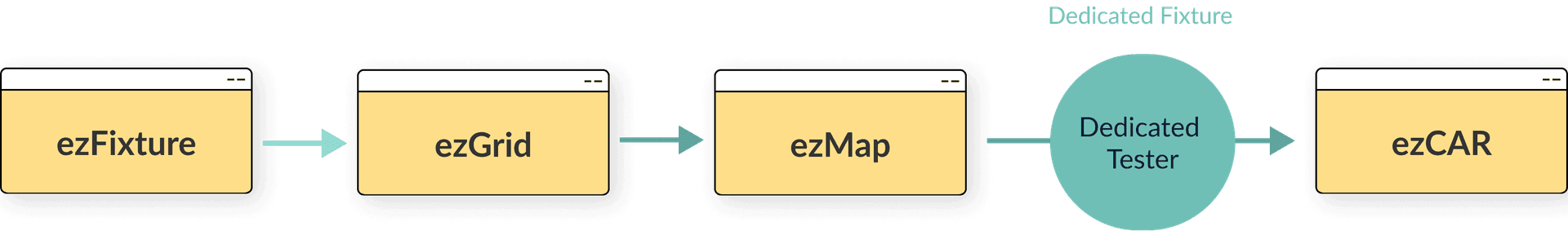

ezCAT is a software bundle that is developed for all stages of bare board testing

ezFixture - Net analysis, test point generation and optimization.

ezGrid, ezMap - Optimize testing fixture set up for better testing results.

ezCAR - Read test result and locate issue on PCB board for repair.

Supports flying probe tester, universal grid tester and dedicated tester.

ezCAR – Display potential open/short location on board

Compatible with all major test machine data output

Find open/short location from the test result with ease

Can be set up with barcode reader for better efficiency

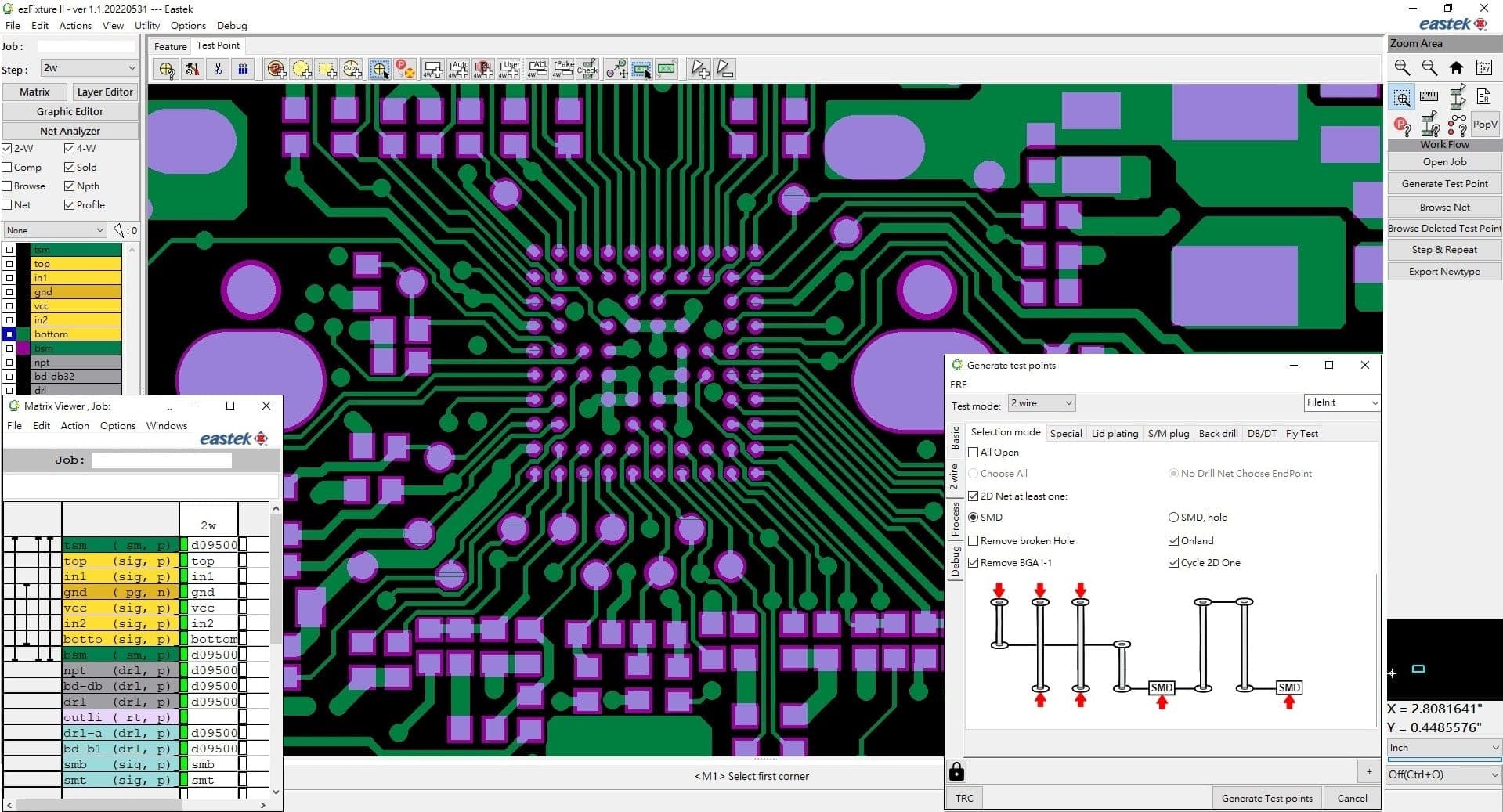

ezFixture – Netlist analysis and test point generating software

Accurate netlist analysis for line spacing 0.1 mil

Optimize test point generation

Support 2 wire and 4 wire testing

Compatible with all major flying probe testers on the market

Output data for ezCAR to display open/short location on board

Before

1

2

Before

1

2

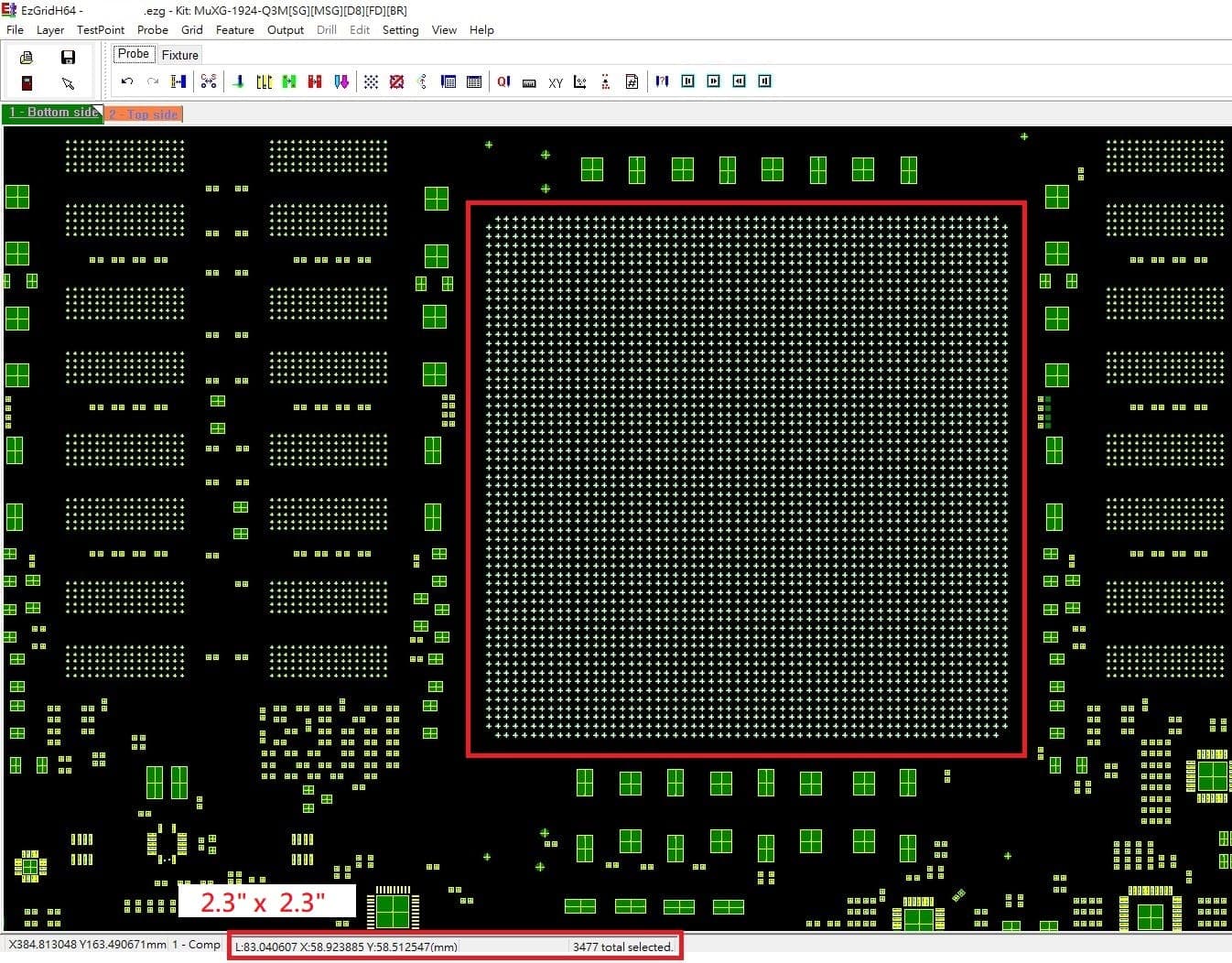

ezGrid – Optimization tool for universal/dedecated tester and fixtures

Balance pressure on probes to improve testing reliability

Reduce probe costs with smart probe positioning

Support up to octal grid density testers

Can be upgraded to set up fixture for HDI and IC substrate boards

Output data for ezCAR to display open/short location on board

ezMap – Generate wiring sequence number for fixture

Output wiring sequence map for fixture wiring

Compatible with all major dedicated PCB testers

Output data for ezCAR to display open/short location on board

Find the right software for your PCB business with Eastek.
