File Convert Solution
Product features
Handle Complex graphics with ease
A total of 42 symbols in ODB++ format
Apertures and data block in Gerber files
All symbols from IPC-2581 files
Polyline and spline from DXF files
Analyze Panelization and positive/negative overlap
Up to date with latest file formats
ODB++ 6.4 u0, 7.0 u6, 8.0 u5
IPC-2581A, IPC-2581B
Gerber RS-274X, RS-274D
Support equipment requirements
Rotation, Mirror image
Resize, Scale
Extract specified circuit or area

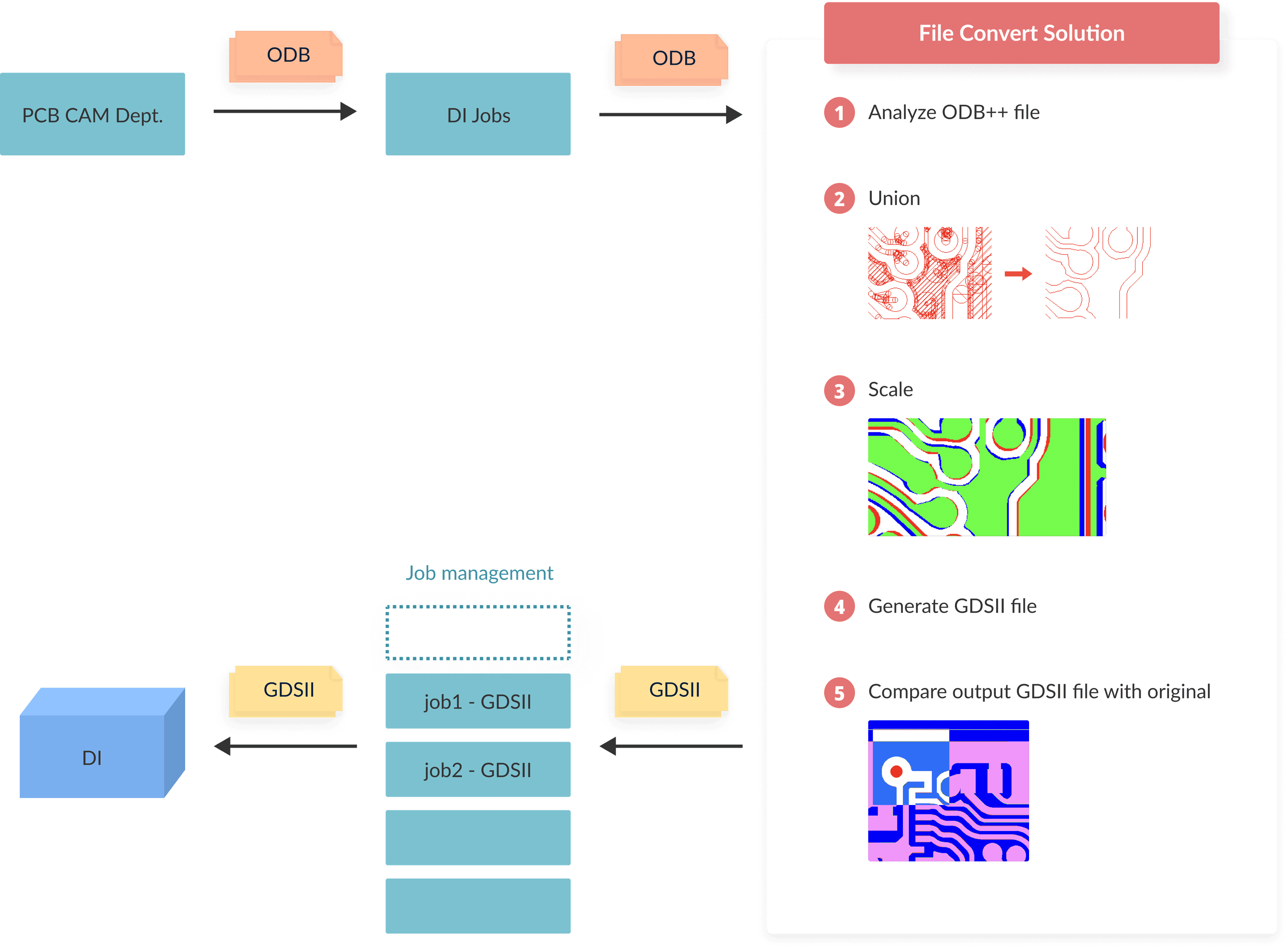

Success story of PCB DI file convert solution
With the integration of Eastek file convert solution, client’s CAM department is now able to feed ODB++ file to the file conversion process, input file will be scheduled and converted to GDSII file, output file will be sent to the DI equipment for exposure, the process is automatic and no additional manpower is required
Comprehensive graphic editing functions

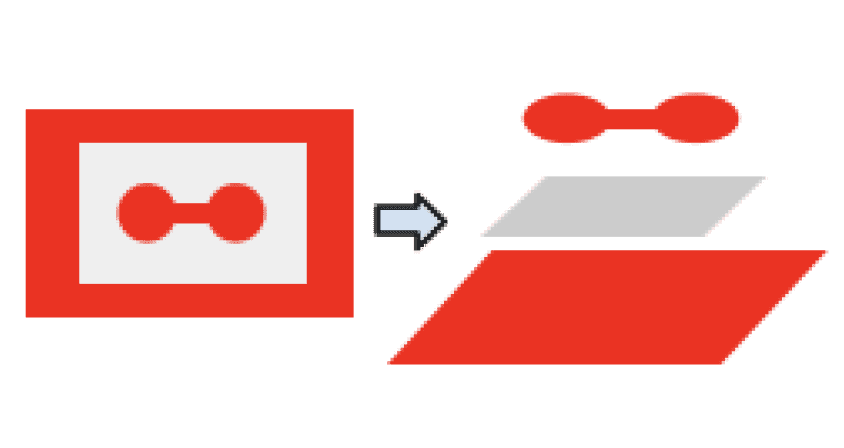

Union
Change complex graphic into simple polygons, decrease the load for data processingTransform

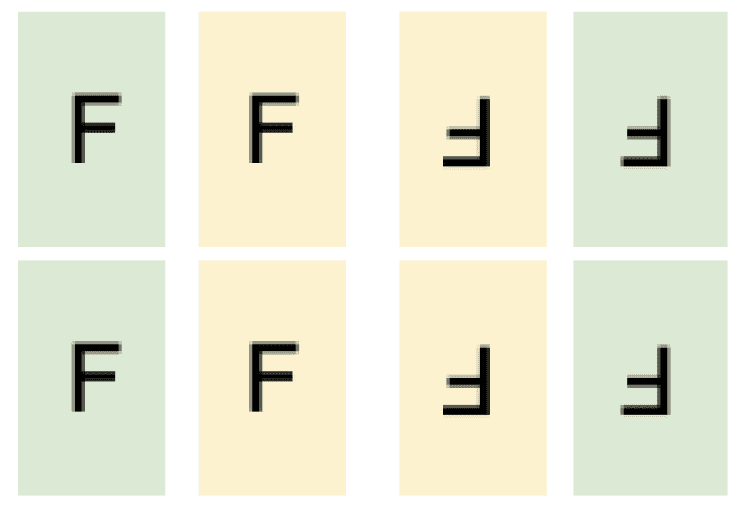

Rotation, mirror image, resize or scale, all can be done with a simple click.Extraction
Specify and extract circuit or solder mask open area for AOI/AVI output.Integration options
- Command LineAs in Linux OS, our file convert tool can be activated through command, complete tasks in the background.> ./ezcam_di.exe -s D:/project/demo.csh --background --user=demo
- Client - ServerIn the offline environment, we can use file convert server to manage conversion process.
- LibraryProvide DLL or Shared library to integrate our product into your existing software.
- StandaloneStandalone software is available.
